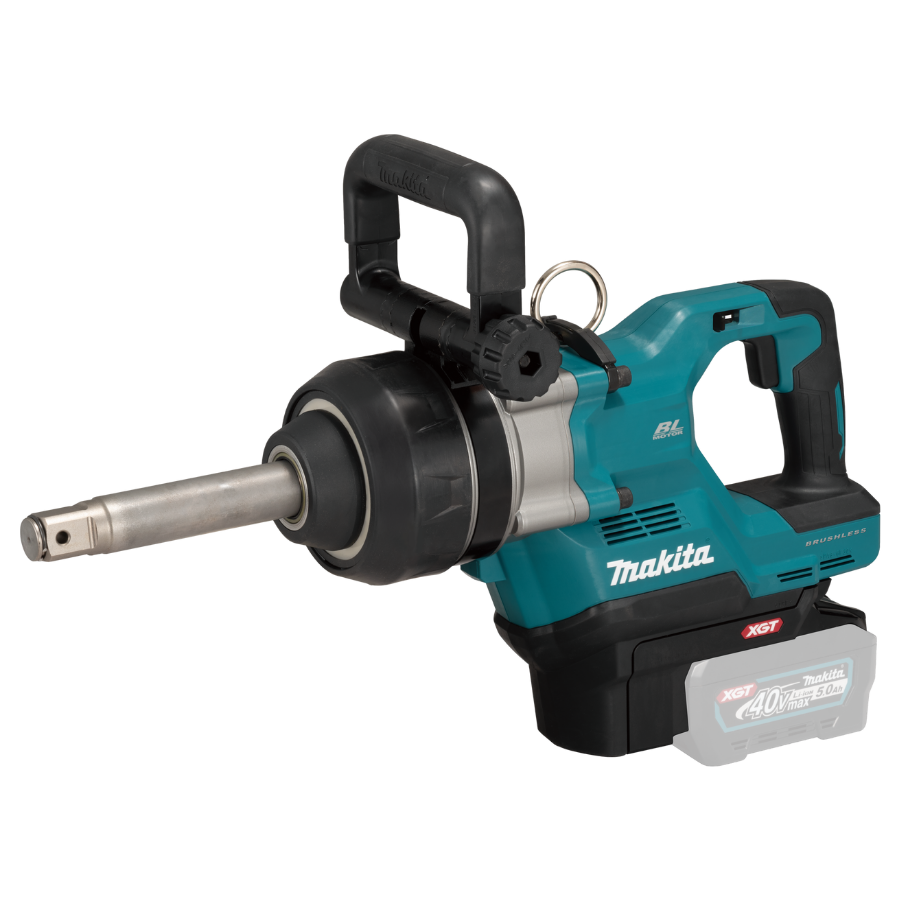

1" (25.4 mm) Cordless Impact Wrench 40Vmax XGT [Bare Tool]
1" (25.4 mm) Cordless Impact Wrench 40Vmax XGT [Bare Tool]
1" (25.4 mm) Cordless Impact Wrench 40Vmax XGT [Bare Tool]

1″ (25.4 mm) Cordless Impact Wrench 40Vmax XGT [Bare Tool]

TW010GZ

Cordless • 1.9 – 2.2 kg (4.2 – 4.9 lbs.) • 40V max XGT® Li-Ion



Local DealersOnline DealersParts DiagramCompatible Accessories



Features:
  • Impact Wrench, Forward/Reverse Rotation Auto Stop Mode
  • Equipped with a long anvil
  • High-torque and Excellent maneuverability
  • Trigger switch with full speed mode (Variable speed / Full speed)
  • Ring illumination LED
  • Side handle can be installed 360° without a tool
  • Auto-stop system available in both forward/reverse rotation modes
  • Tool hanger (Ring) allows to hang the tool on pipes, hooks, etc.
  • Two-finger trigger shaped for easy pulling even with a gloved hand
  • Equipped with a BL motor
  • Variable speed control by trigger
  • Compatible with XPT (eXtreme Protection Technology)
  • Electronic 4 stage impact power selection for added versatility
  • New optional sockets for added versatility





Battery and charger are sold separately.

Features

Specifications:
Li-IonAh4.02.52.0
FASTENING CAPACITIES
Standard bolt M27 – M45
High tensile bolt M20 – M33
SQUARE DRIVE 25.4 mm
NO LOAD SPEED (RPM)
Max impact mode(4) 0 – 1,200 min-1
Hard impact mode(3) 0 – 850 min-1
Medium impact mode (2) 0 – 700 min-1
Soft impact mode (1) 0 – 600 min-1
IMPACTS PER MINUTE
Max impact mode (4) 0 – 1,750 min-1
Hard impact mode (3) 0 – 1,500 min-1
  Medium impact mode (2) 0 – 1,300 min-1
  Soft impact mode (1) 0 – 1,200 min-1
 MAX. FASTENING TORQUE (AT MAX IMPACT MODE (4))
 Fastening with M36 for 6 seconds 3,150 N·m
  Fastening with M36 for 3 seconds 2,850 N·m
NUT-BUSTING TORQUE (AT MAX IMPACT MODE (4))4,000 N·m
OVERALL LENGTH 570 mm
RATED VOLTAGE D.C. 36 V – 40 V max
Net weight11.8 – 12.8 kg
